Materials
Finished Brass
Dimensions
1' - W2,5" x D3" x H16"
W6,3cm x D7,6cm x H41,5cm
2' - W2,5" x D3" x H26,5"
W6,3cm x D7,6cm x H67,5cm
3' - W2,5" x D3" x H38"
W6,3cm x D7,6cm x H97,5cm
Weight
1’ - 1,3 kg
2’ - 1,4 kg
3’ - 1,6 kg
LED Illumination
24 VDC T5 LED tube
2700 Kelvin
90 CRI
Backplate
Remote: 2.5 x 4.2 inch / 63 x 107 mm in
matching metal finish
Local: 3 x 12.5 inch (76 x 317 mm) in
matching metal finish at additional cost
Electrical - Total
Wattage: 3 / 6 / 9 Watt
Lumens: 240 / 480 / 720
110 - 240 VAC
277 VAC upon request
0-10V dimming upon request

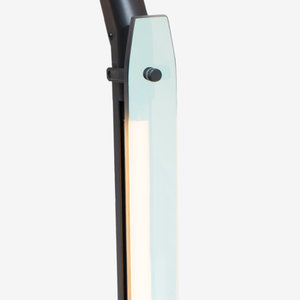

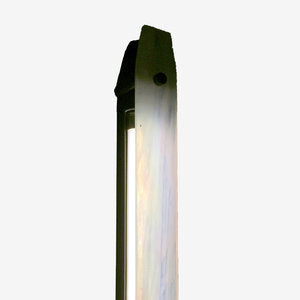

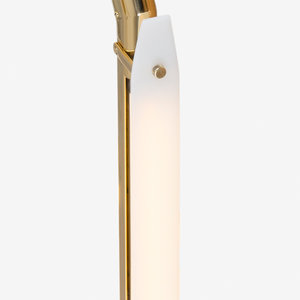

Diffusers available at additional cost
Lead Time: 14-16 Weeks
